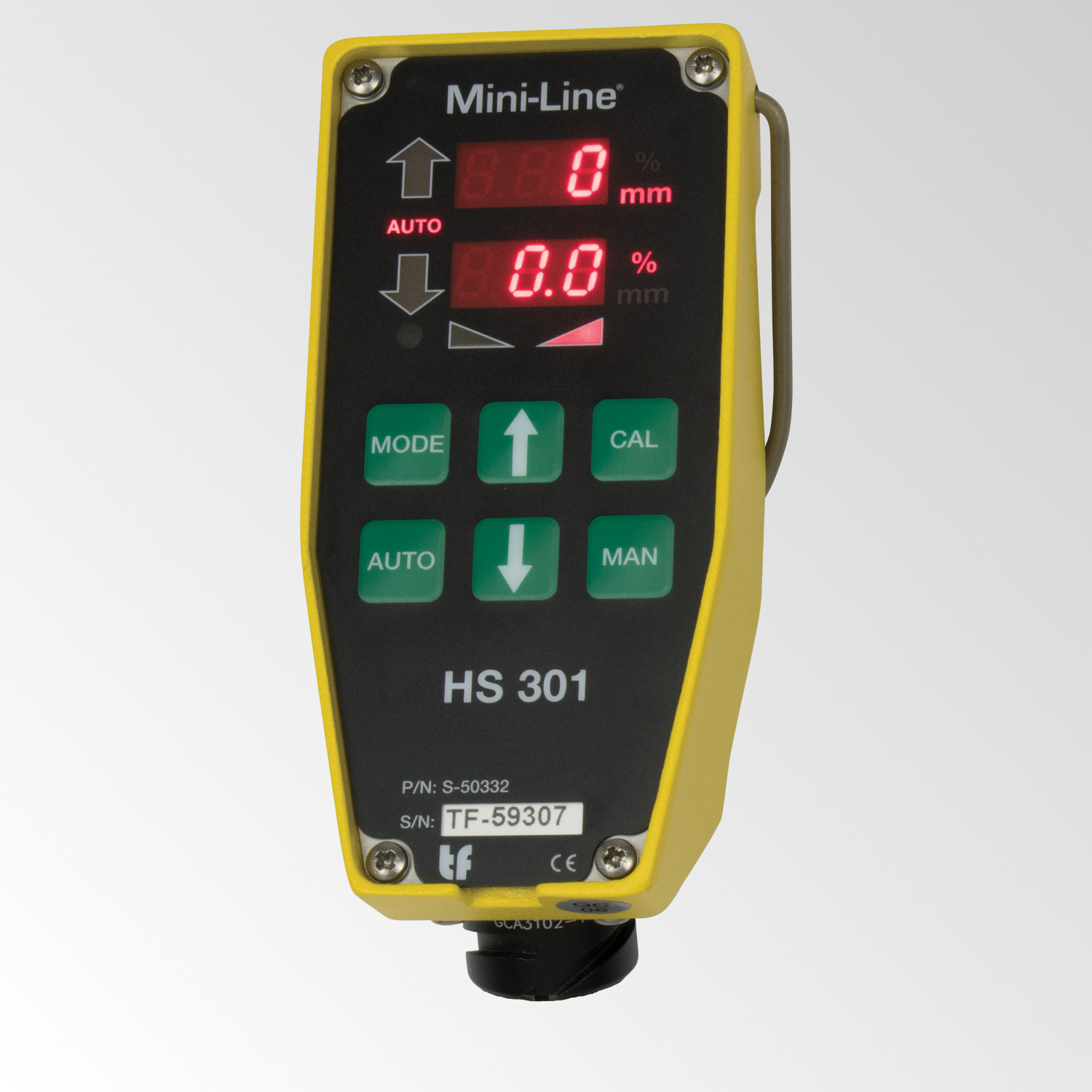

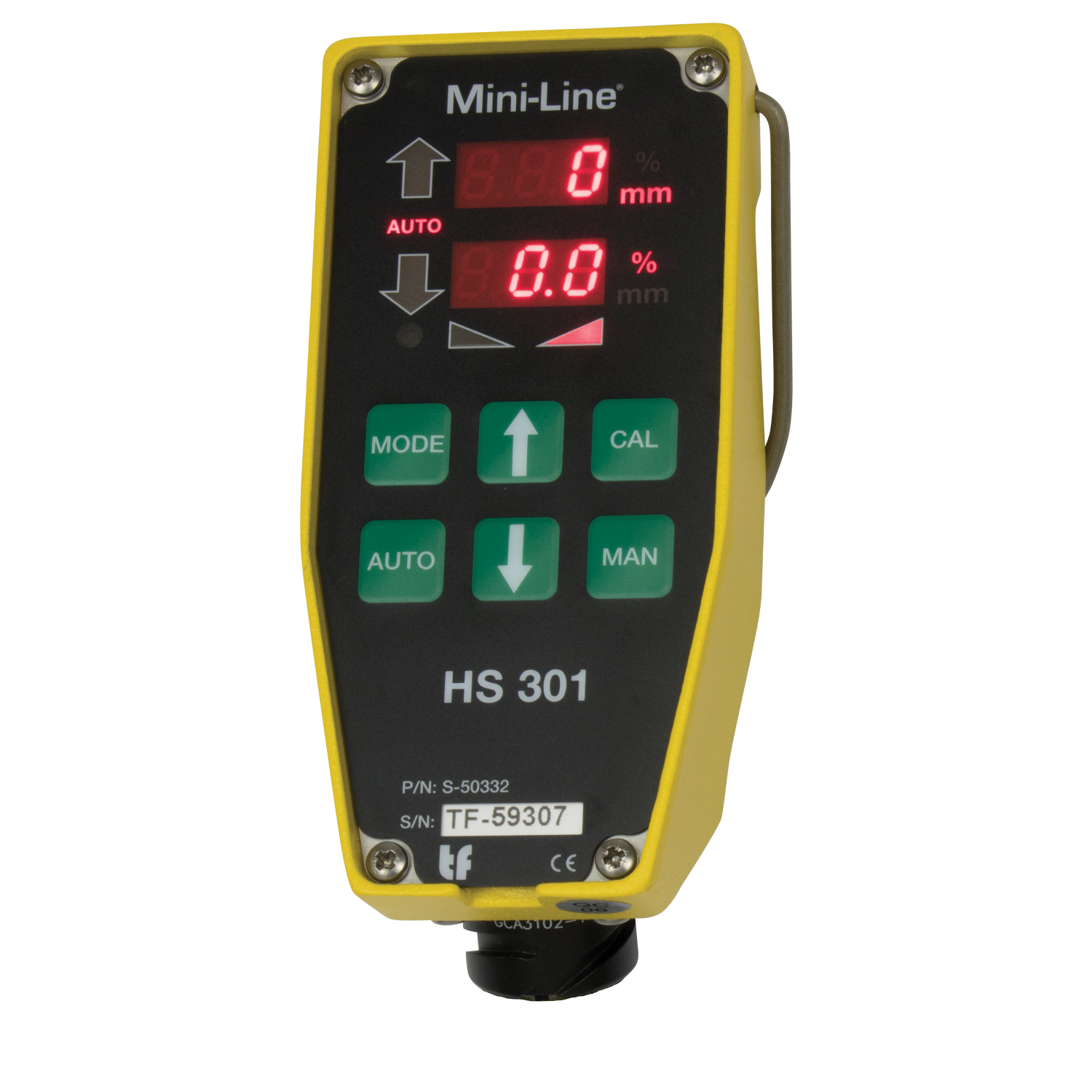

HS301 is a paving control of Mini-Line® product family. It controls the elevation and slope of the paver's screed by automatic regulation of the tow arm height on either right or left side of the machine.

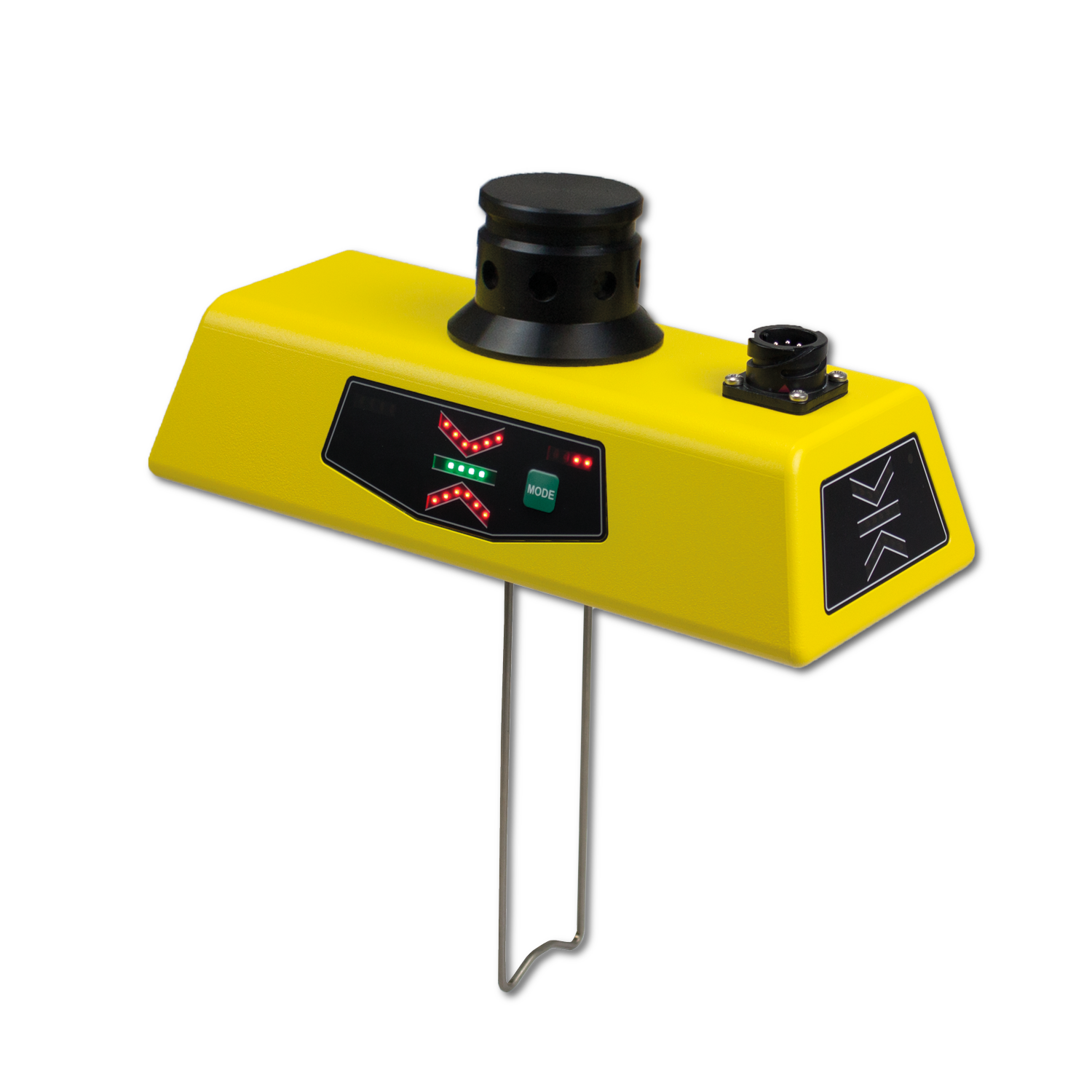

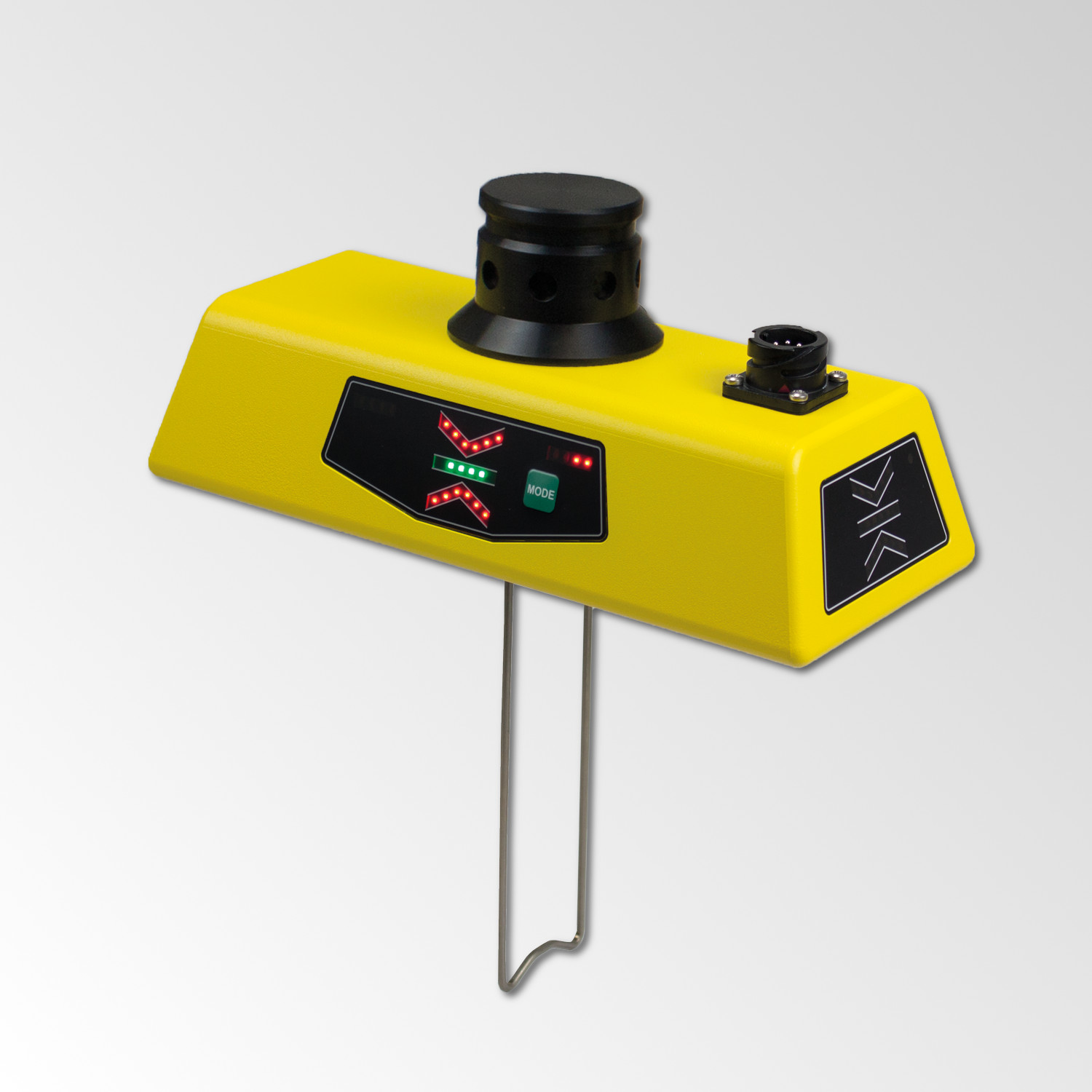

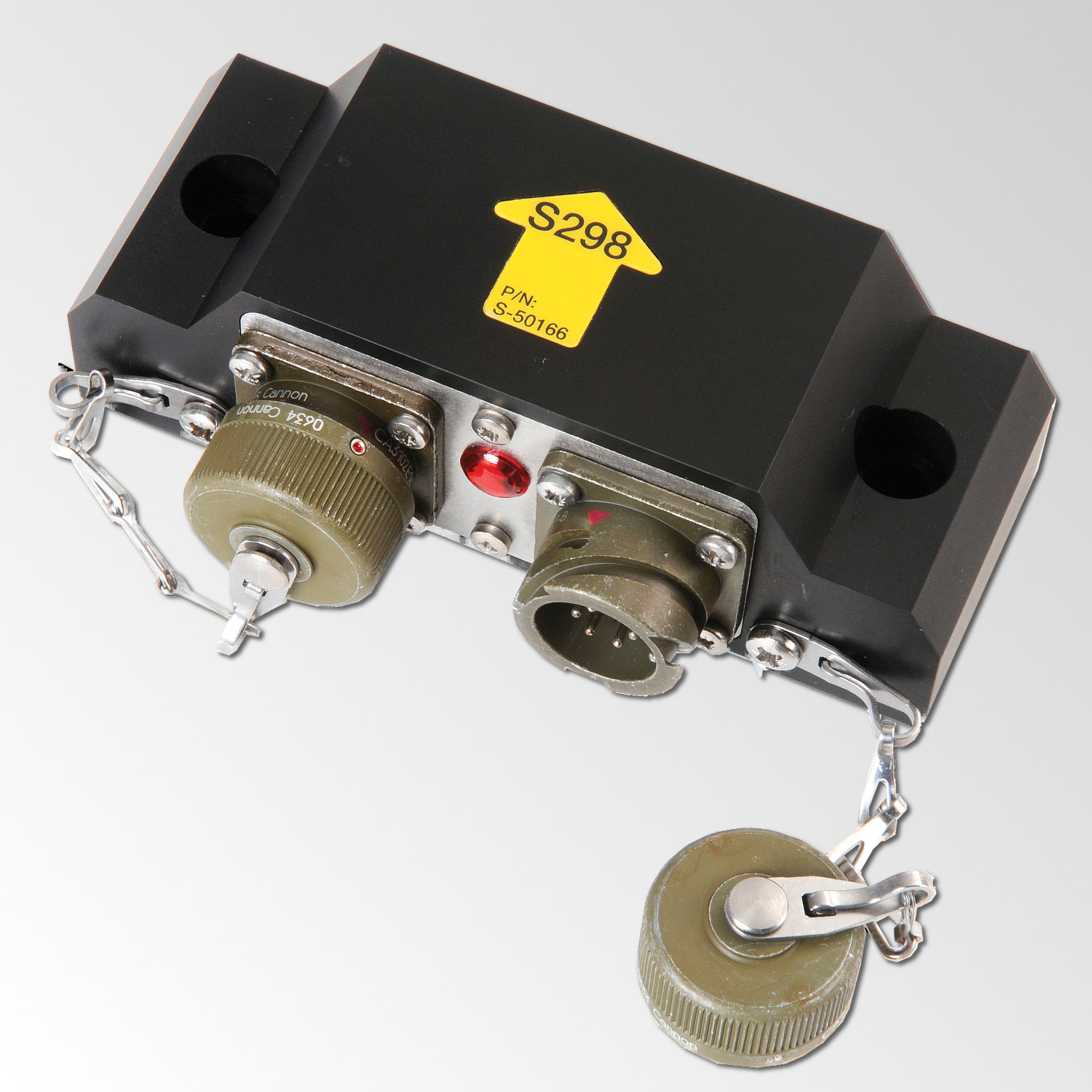

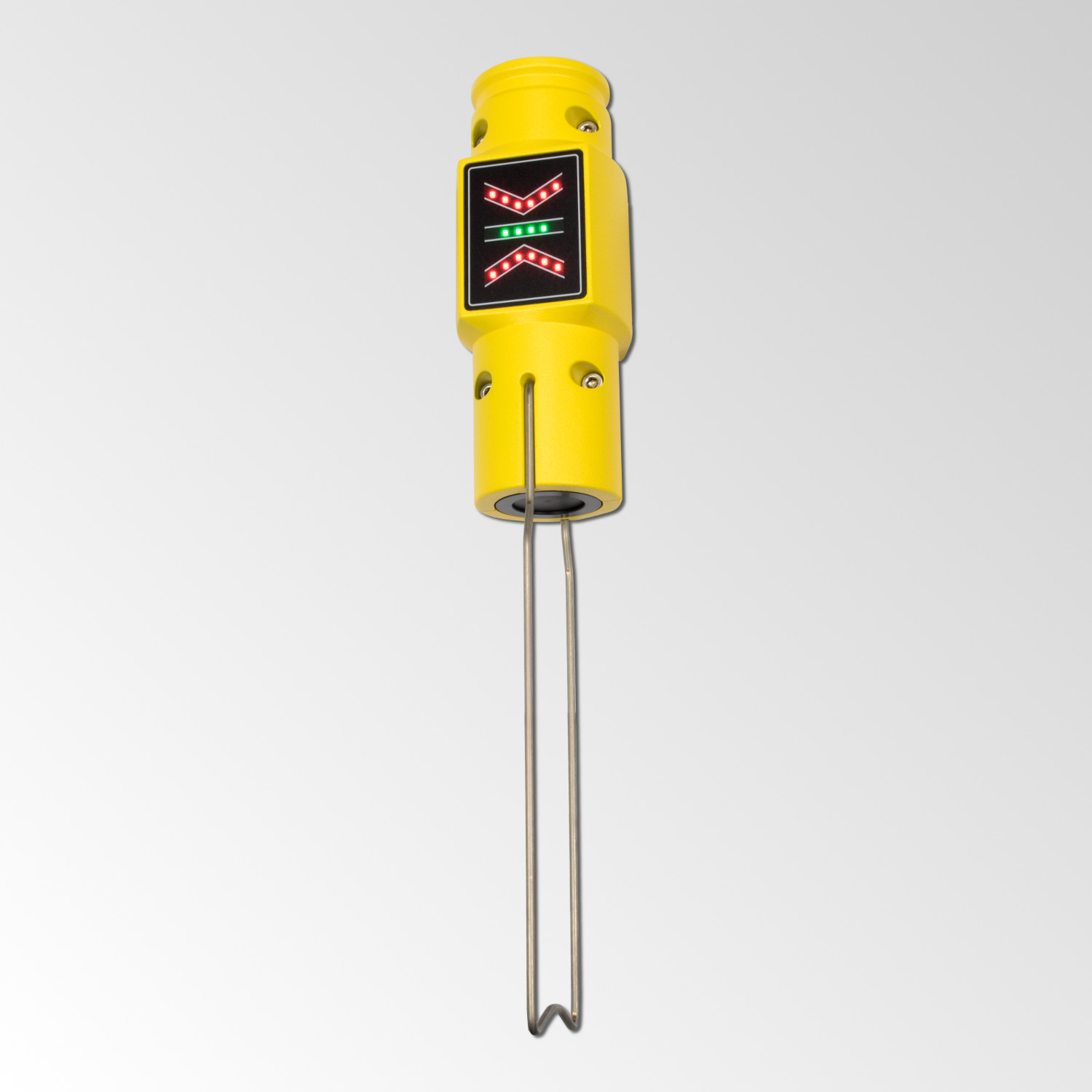

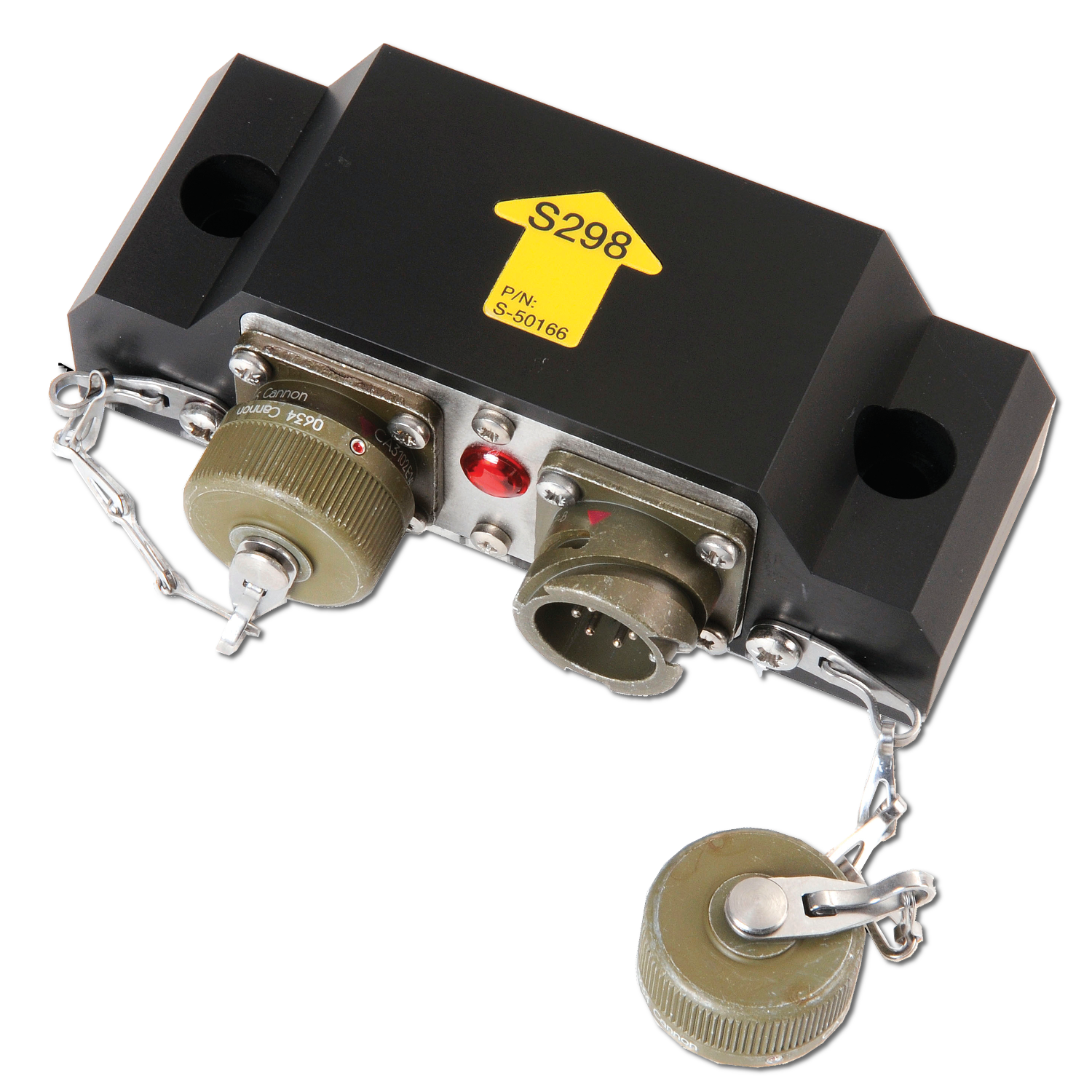

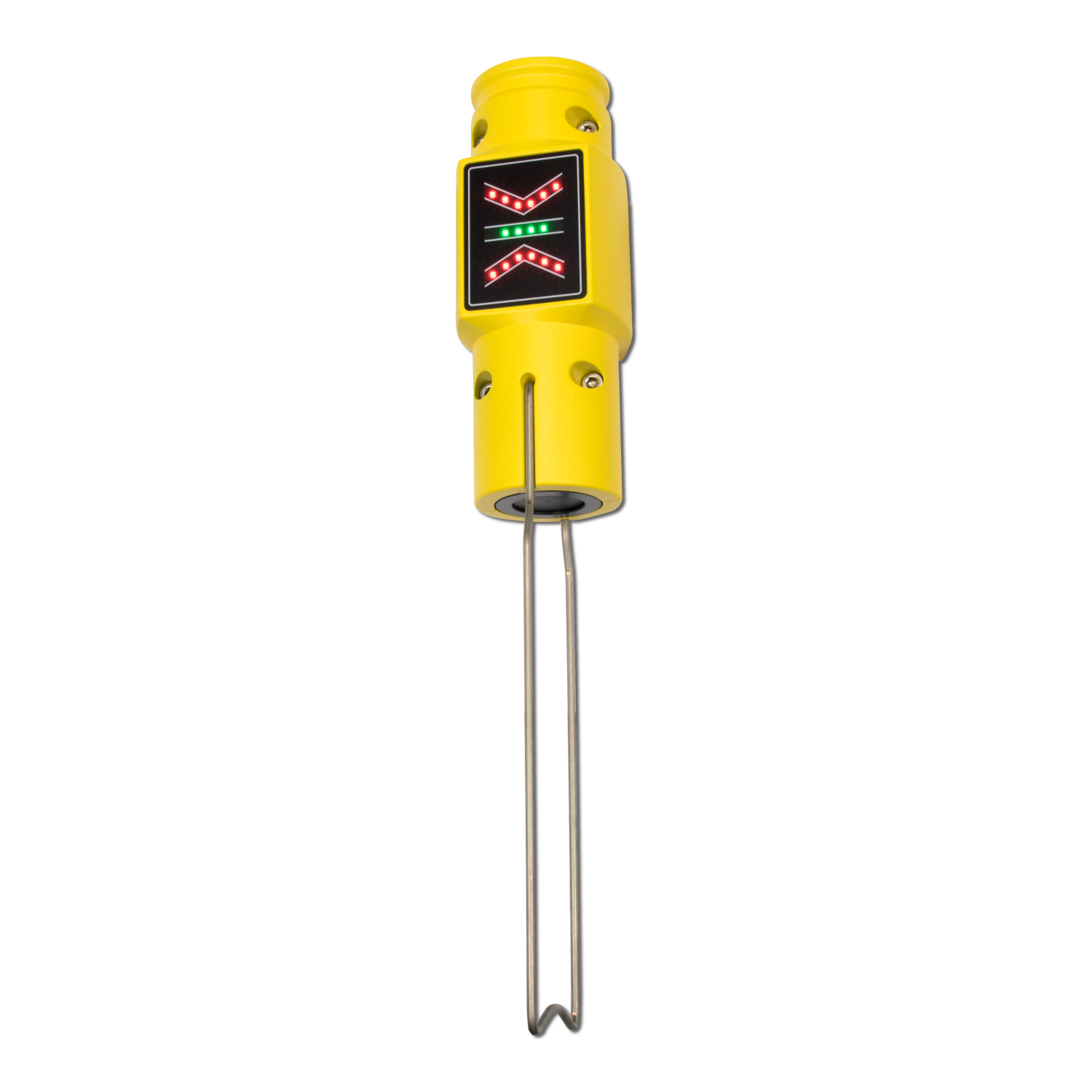

The system works with a variety of sensors in order to thoroughly meet the demand of your different paving jobs: G221 Mono-Sonic or G224 Multi-Sonic sensors, S298 Slope sensor or LS350 laser receiver with linear millimetre resolution over the entire reception window.

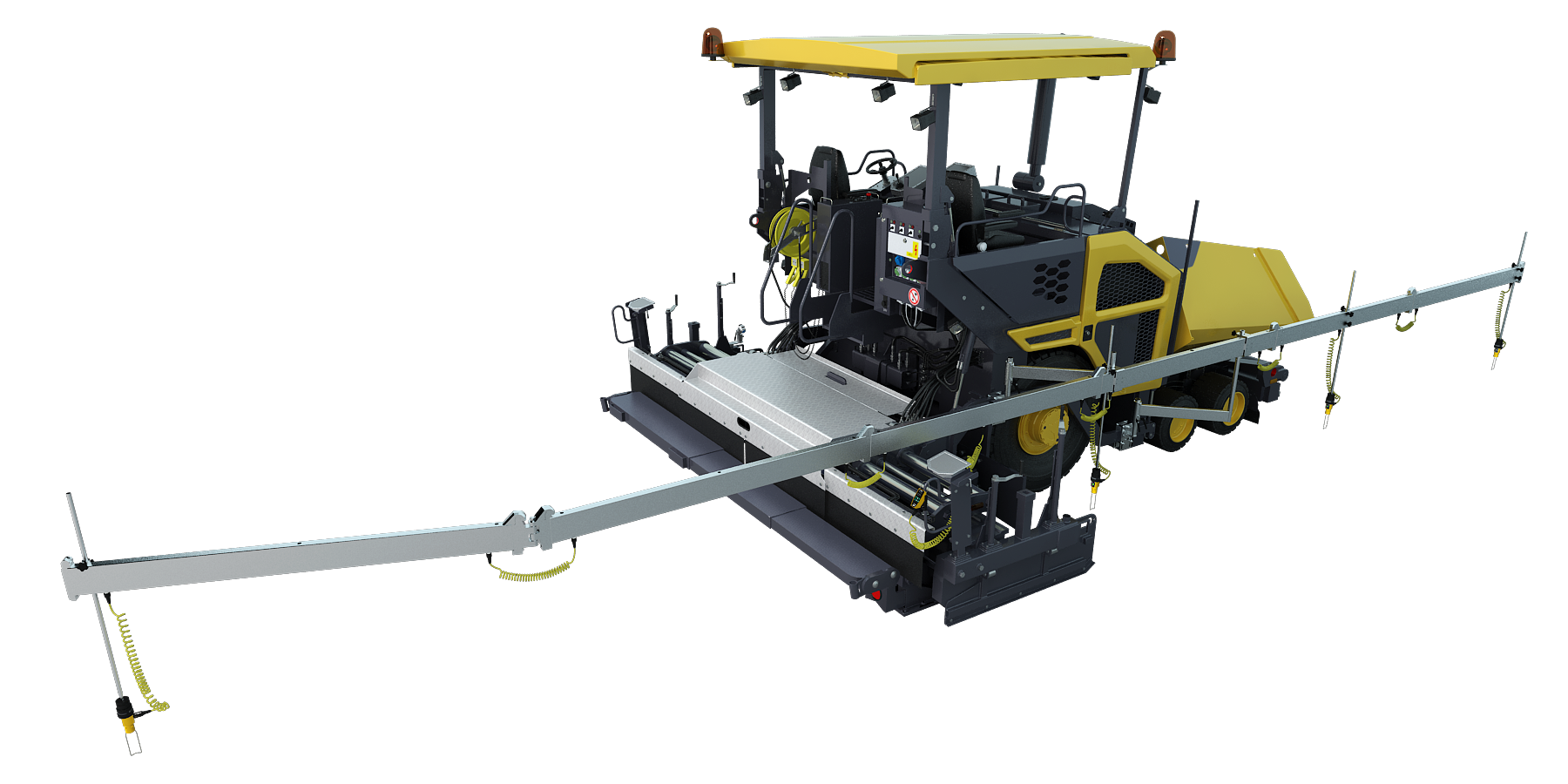

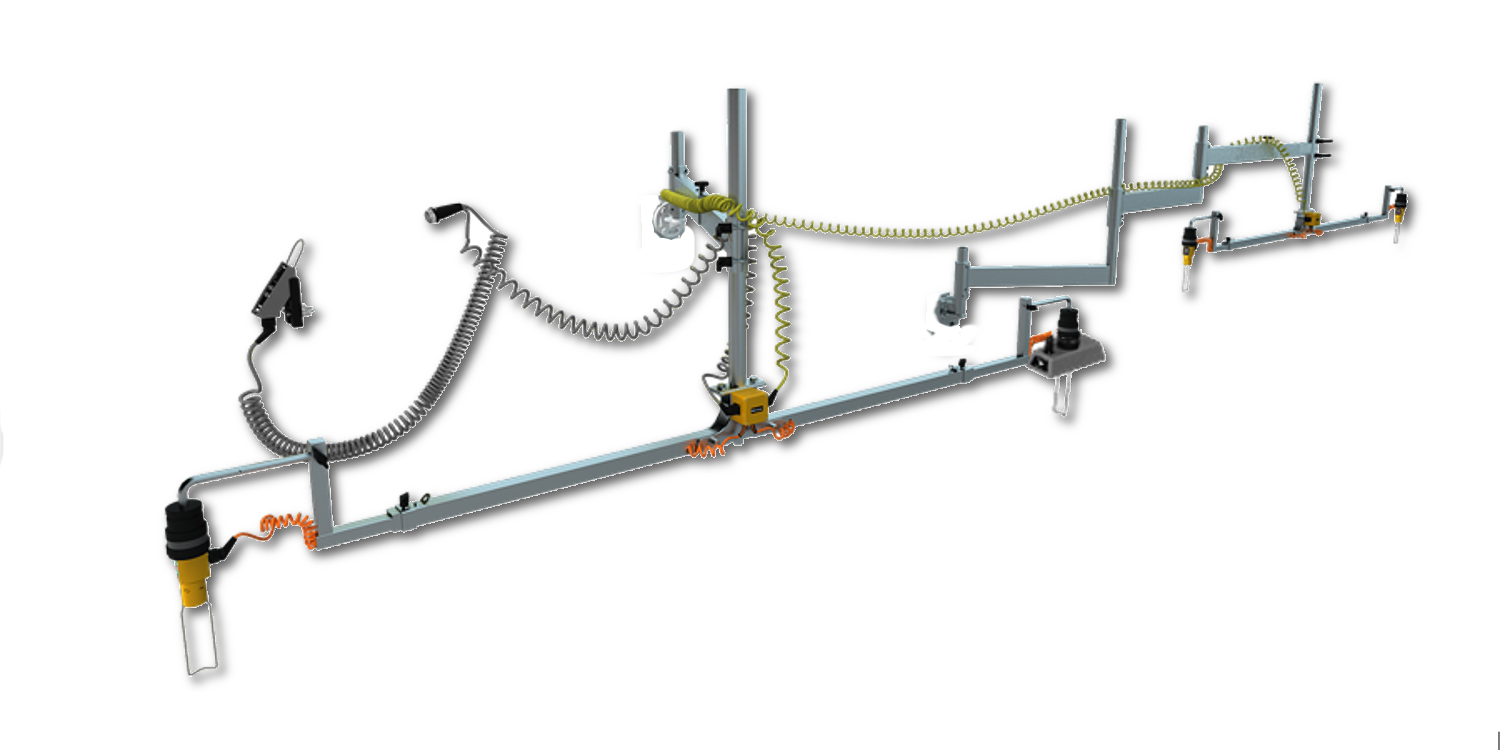

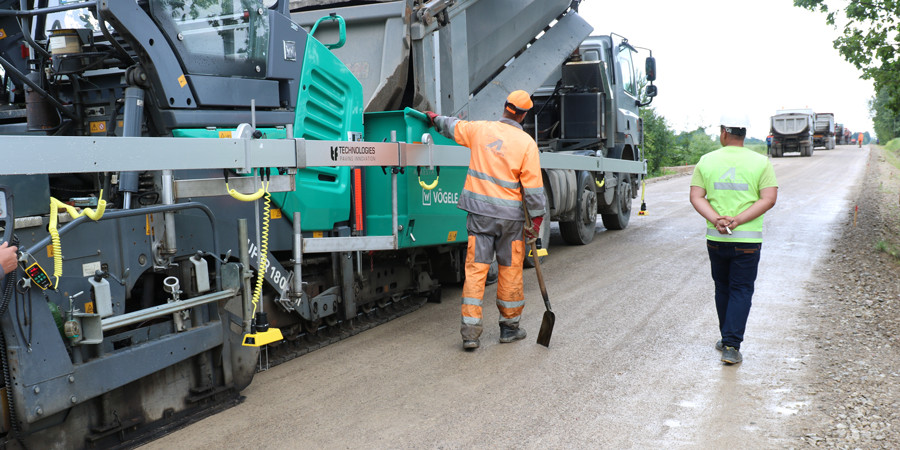

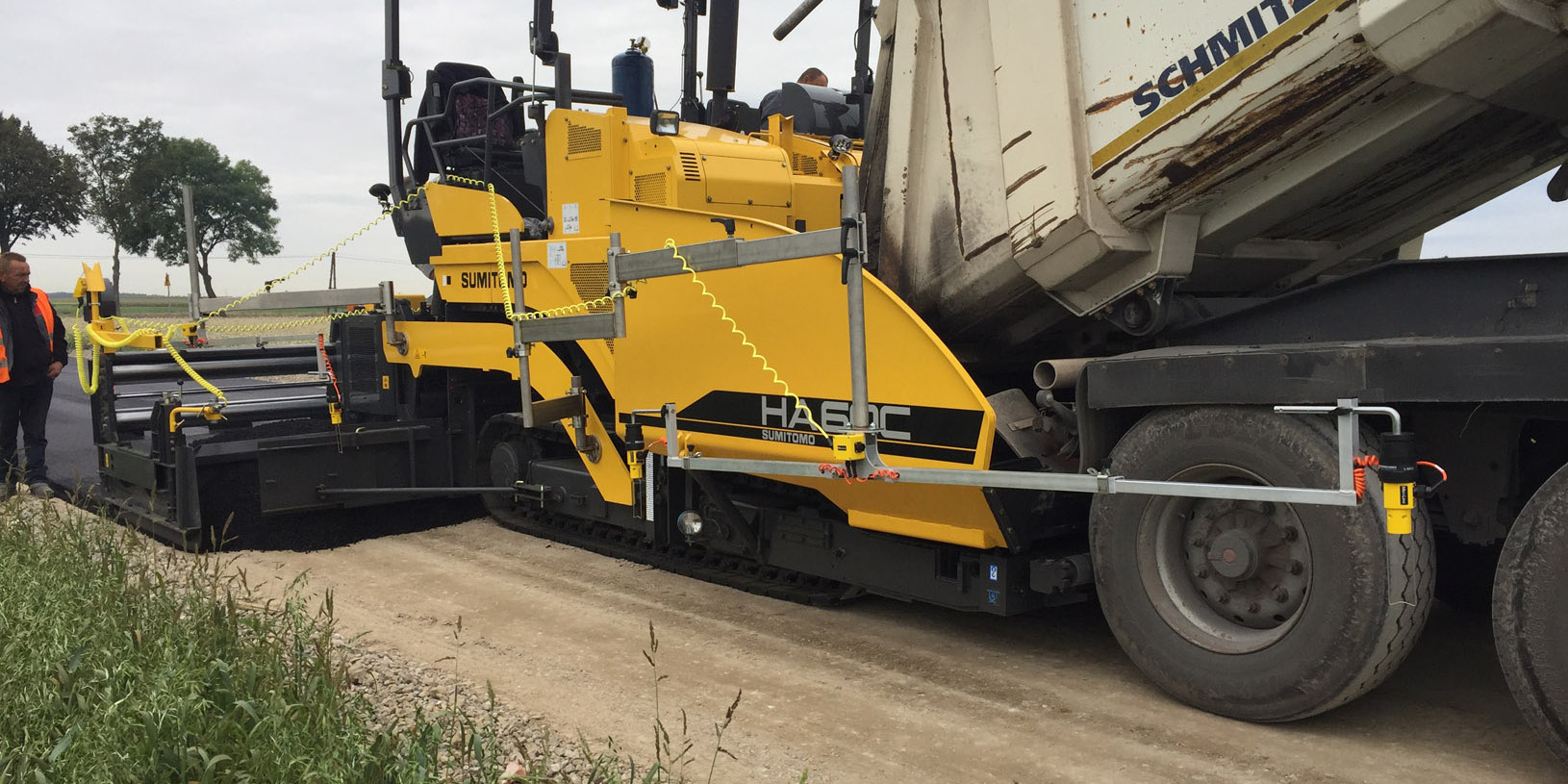

You can also use averaging beams with three to six ultrasonic sensors in a row to level out smaller height irregularities if the subbase or ground serves as levelling reference and lay a smoother asphalt mat. With this method there is no need for a surveyor to lay-out a reference string-line.

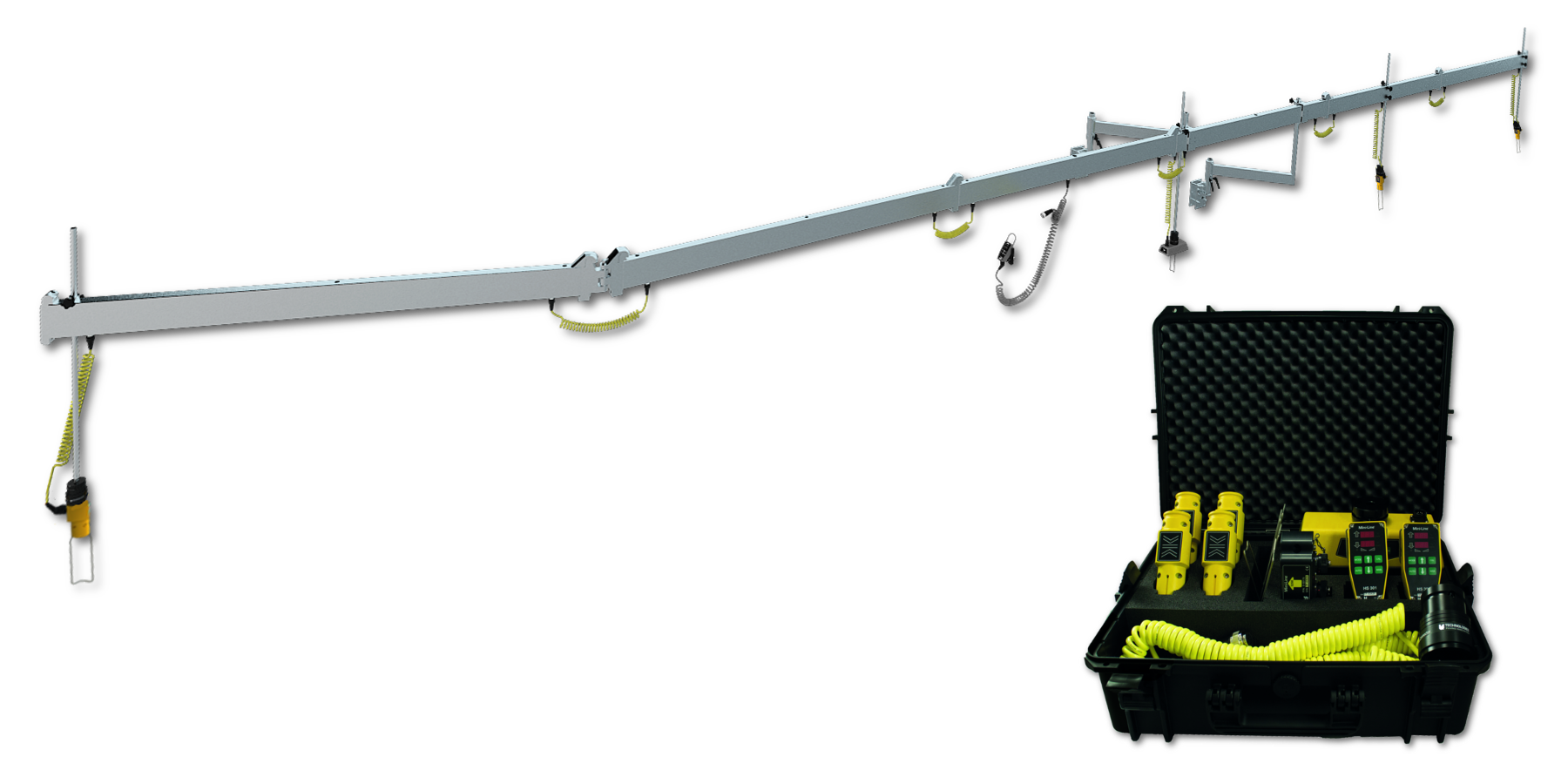

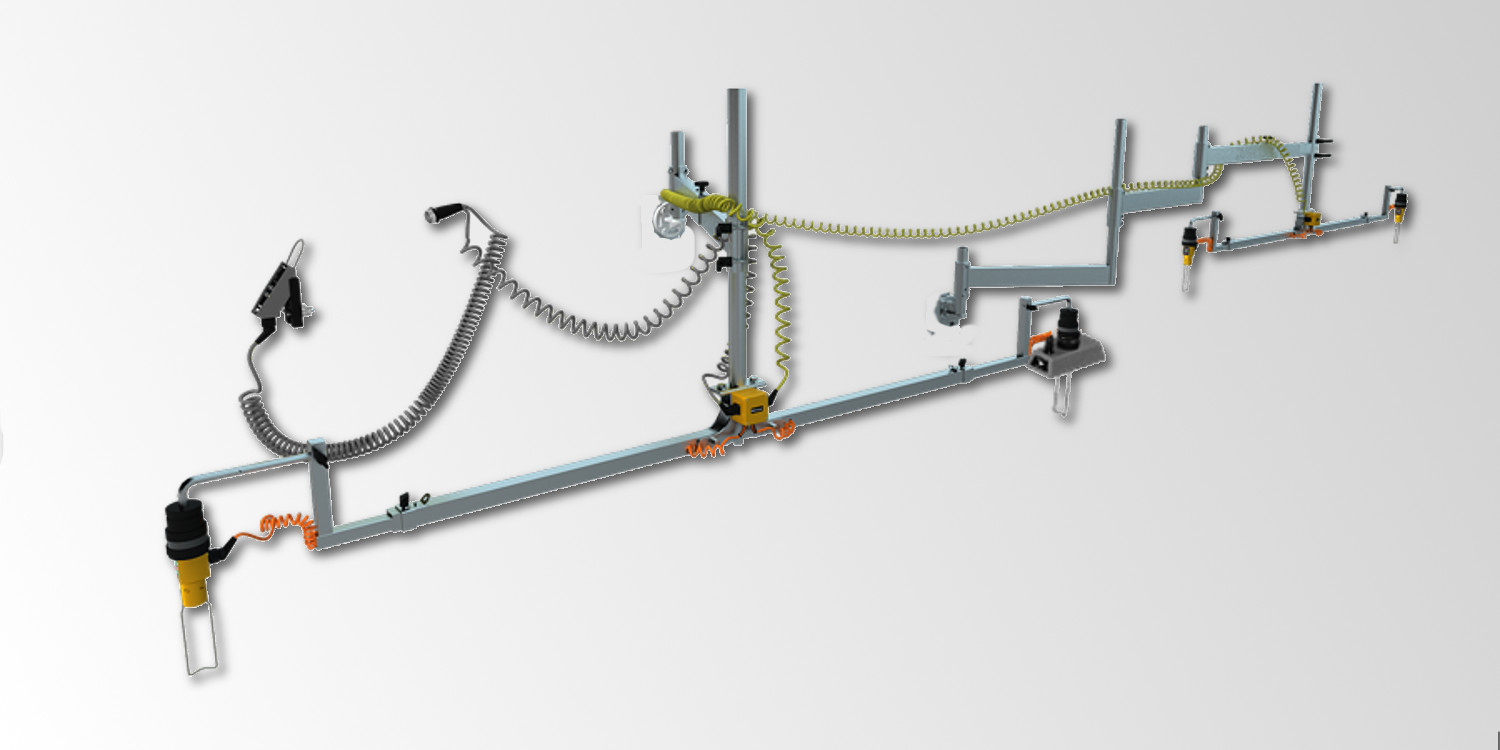

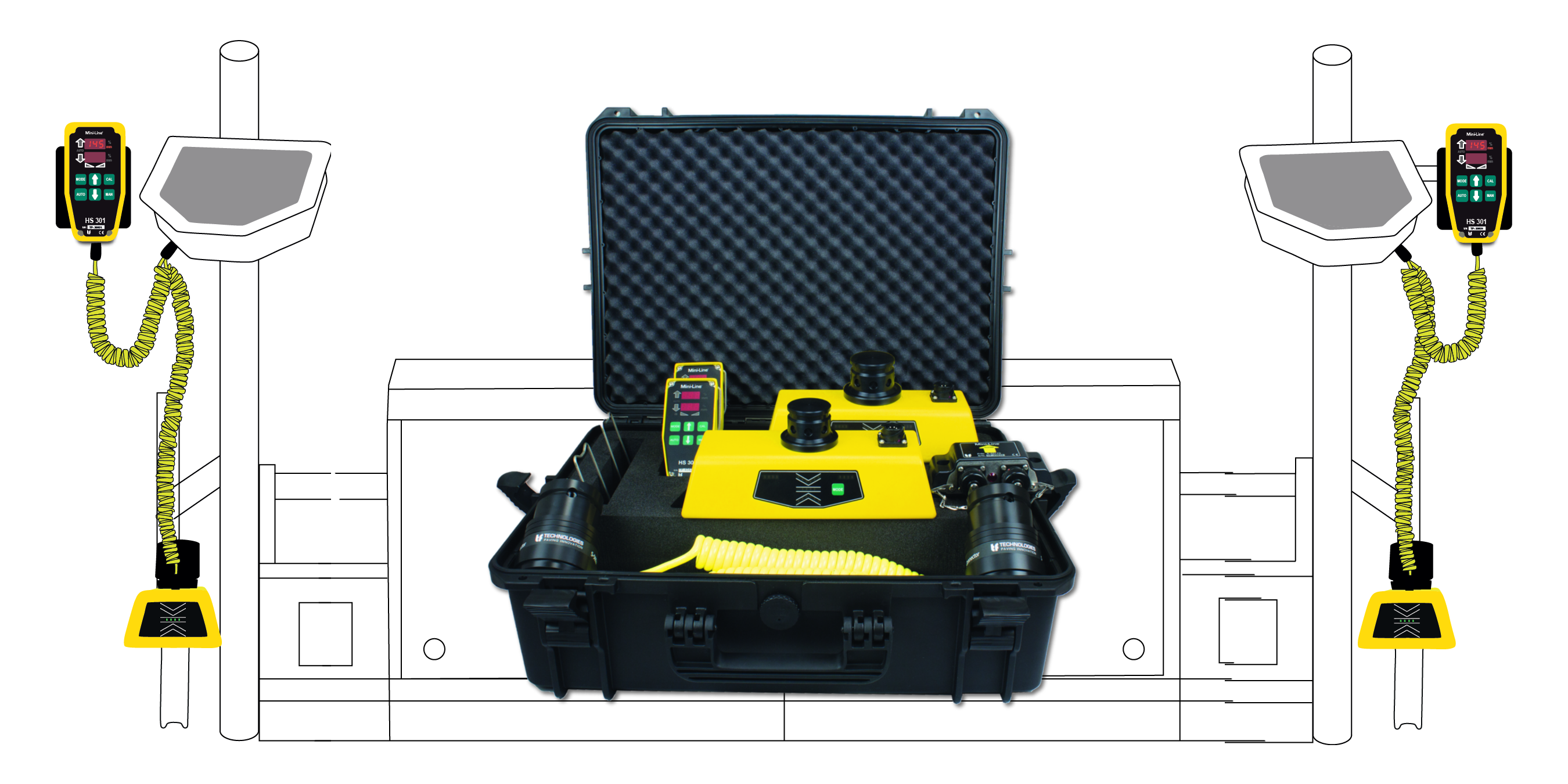

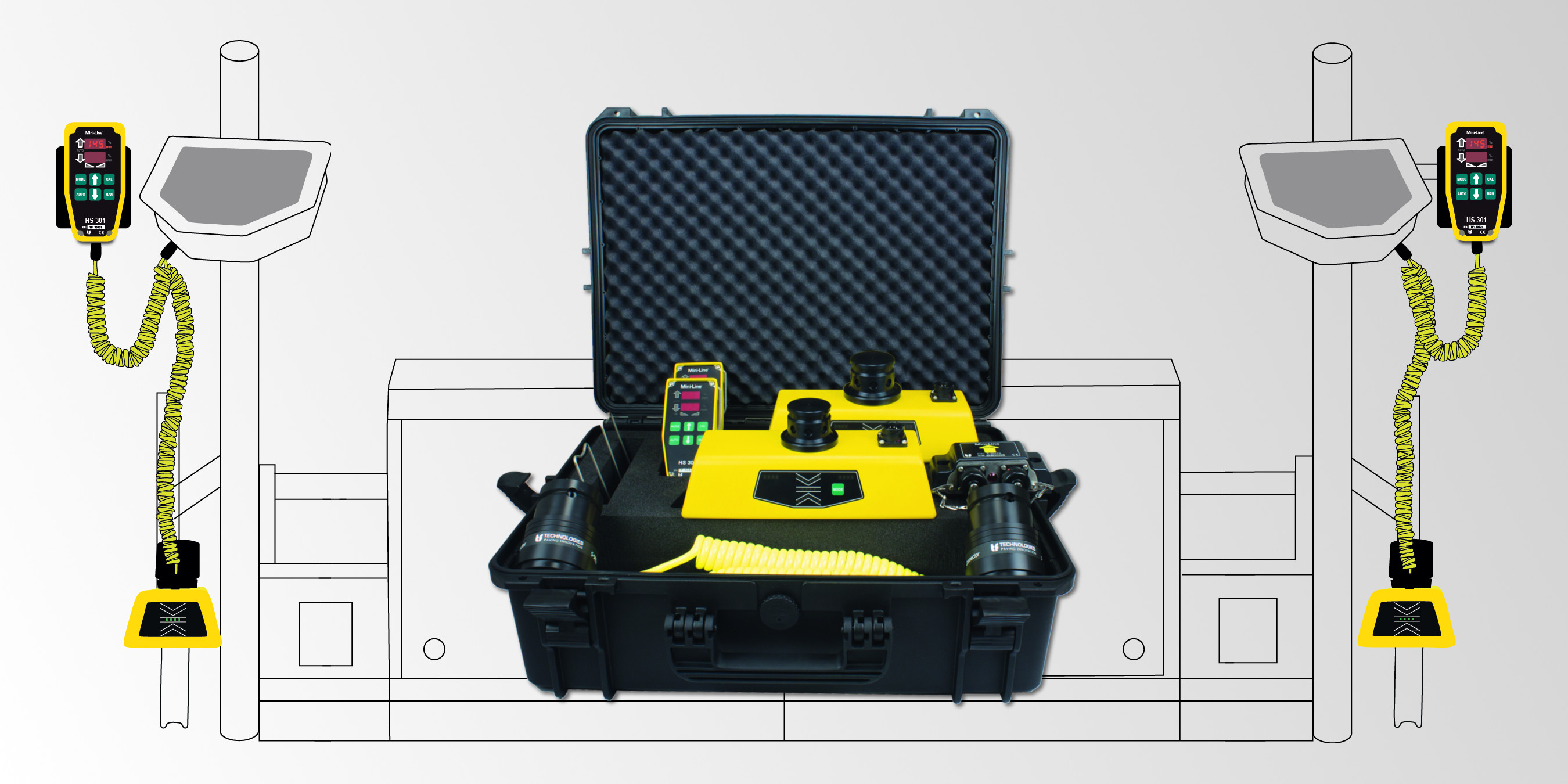

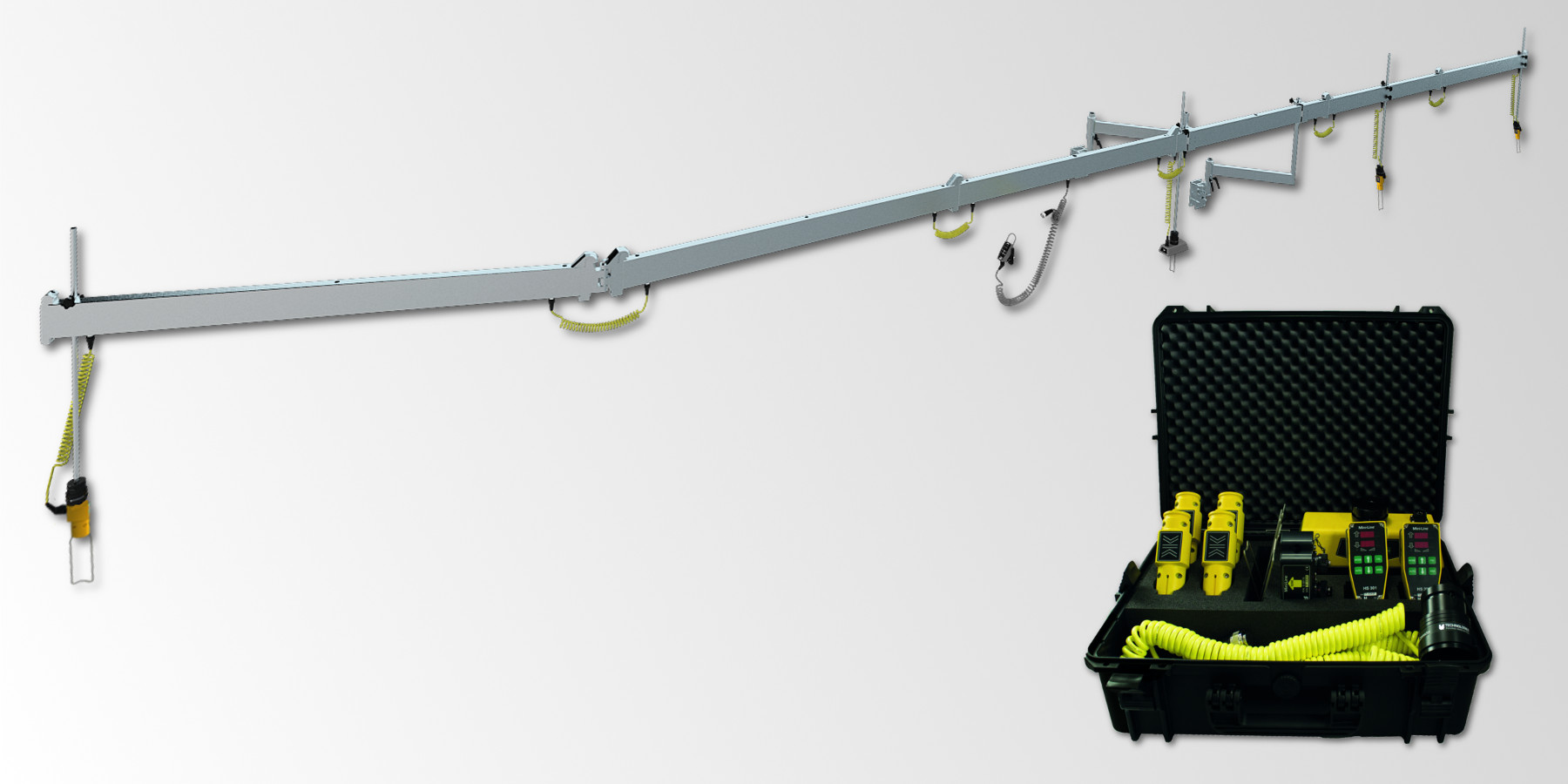

Our tip: In order to have a levelling kit ready for virtually all applications we recommend our Mini-Line® base kit consisting of HS301 handset and controller, plus our G224 Multi-Sonic sensor that copies the height from a ground or a string-line. Add to this our slope extension kit and the Compact or Super Averaging beams with extra 3 to 5 Mono-Sonic sensors G221.
Technical data of HS301
|Resolution:||Elevation 1 mm
|Valve output:||ON/OFF, PNP or NPN
max. 1,2 A permanent current, 2,0 A pulsed current
|Power supply:||10 ... 30 V-, polarity protected|
|Power consumption:||Typically 60 mA at 24 V DC,
max. 200 mA
|Operating temperature:||-10 ...+70 °C|
|Protection degree:||IP68 water and dust proof|
|Dimensions:||14 x 7 x 5 cm|
